Project Description

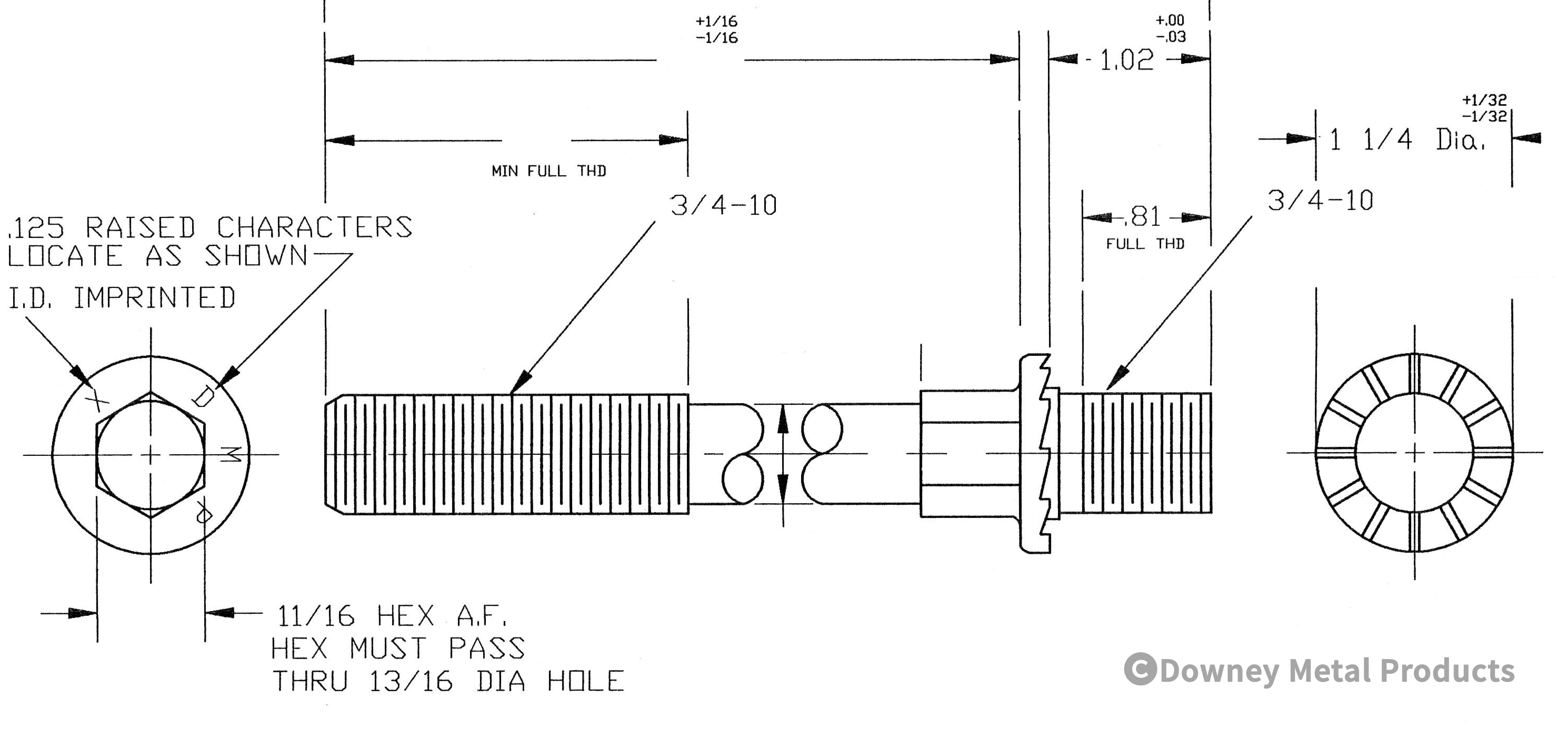

Line post stud assembly. Long shank for wood crossarms. All Studs are Hot Dip Galvanized and Stressed Relieved.
| Catalog No. | L | T | (WN 3/4 WASHER NUT) QTY |
(LW 3/4 SPRING LOCKWASHER) QTY |
(SW 3/4 – 2 1/4 SQUAREWASHER) QTY |
(SN 3/4 SQUARE NUT) QTY |
(LN 3/4 M-F LOCKNUT) QTY |
(LW 3/4-DC DOUBLE- COIL LOCKWASHER) QTY |
(HN 3/4 HEX NUT) QTY |
|---|---|---|---|---|---|---|---|---|---|

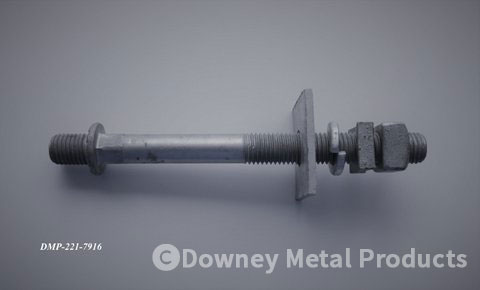

| DMP-221-7916 | 7 9/16 | 4 | 1 | 1 | 1 | 1 | |||
| DMP-221-816 | 8 1/16 | 4 | 1 | 1 | 1 | 1 | |||
| DMP-221-1016 | 10 1/16 | 6 | 1 | 1 | 1 | 1 | |||

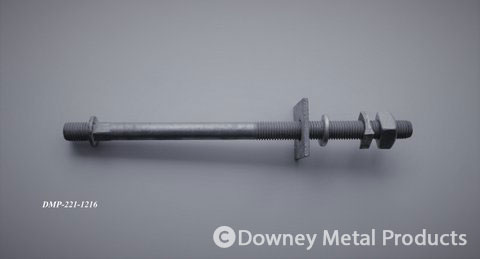

| DMP-221-1216-4 | 12 1/16 | 4 | 1 | 1 | 1 | 1 | |||
| DMP-221-1216-6 | 12 9/16 | 6 | 1 | 1 | 1 | 1 | |||
| DMP-221-1416-4 | 14 1/16 | 4 | 1 | 1 | 1 | 1 | |||

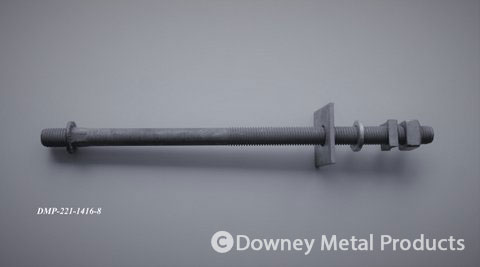

| DMP-221-1416-8 | 14 1/16 | 8 | 1 | 1 | 1 | 1 |
